Pomace Dryer

Pomace dryer from Sunco Machinery is continuous pomace drying system for apple, orange, grape, peach, olive, etc Rotary Pomace Dryer can dewater high humidity pomace with moisture content up to 80% to be about 10-13% moisture content as need one time directly

Technical Parameters

Rotary Pomace Dryer Introduction:

Pomace Dryer Machine by Sunco Machinery is continuous pomace drying system for apple, orange, grape, peach, olive, etc. Apple Pomace Drier can dewater the high humidity pomace to be about 10-13% moisture content as need one time directly.

◆ Pomace Dryer Machine is developed by Sunco Machinery upon years' research, and it is Pomace continuous drying system.  Pomace dryer also is called as Apple pomace dryer, pomace drying machine, rotary pomace dryer, etc.

◆ Whole set of Pomace Drying System mainly contains : Coal Hot Air Furnace, Feeding Machine, Discharging Machine, Rotary Drum Dryer, Dust Cleaning System, Electric Control Box, High and Low Temperature Air Duct Tube, etc.

◆ Focus on the marc's special features such as big moisture content, high sugar content, easy to bond, Sunco Machinery Pomace Dryer adopts series of original technology, solves all kinds of problems during the marc drying process, and obtain very good drying effect.

Pomace dryer, apple pomace drying machine, rotary pomace dryer, drying pomace equipment, workflow of pomace drying system

Nowadays, Pomace Drying System have worked successfully in many Fruit juice processing enterprises. Pomace Dryer Machine is suitable for the drying of apple pomace, pineapple pomace, Orange pomace, olive pomace, Grape pomace, etc.  As a result, it is also called olive pomace dryer, apple pomace dryer,etc.


Rotary Pomace Dryer for Pomace Performace Features:

Pomace dryer, apple pomace drying machine, rotary pomace dryer, drying pomace equipment, workflow of pomace drying system

◆ Large moisture content decrease: Marc Dryer can dewater the fresh marc moisture content from about 82% to less than 13% one time directly.

◆ Large processing capacity. Single set Pomace drying system can deal with 80-500 tons fresh marc every day.

◆ Wide application: Except for the drying of fresh apple pomace, marc dryer also can be used to dry the poor scattered and large moisture content decrease materials such as vinasse, compound fertilizer, etc.

◆ For the Relevant components, we have considered the requirements for ensuring long-term continuous full load working under high temperature.

◆ The heat source adopts the chain type coal hot air furnace which is of strong adaptability for all kinds of coal. The fire grate is stepless driving, and the coal burns fully, and the heat efficiency can be more than 90%. The coal loading and deslagging are all done by machine, it has the features of stable working and easy operation.

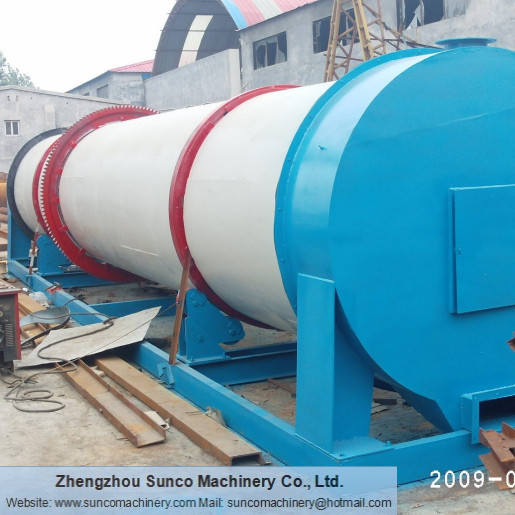

◆ Pomace Drier for pomace adopts rotary drum dryer as the main machine, it has the features of simple structure, little breakdown, low maintenance cost, large capacity, and long term continuous working, etc.

◆ Adopts double layers of lifting boards inside the cylinder drum, and ensure the drying effect.

◆ Pomace Drying Machine for pomace adopts new type sealing system and thermal insulation system, coal consumption and electricity consumption is less than the old design rotary dryer .

◆ Inside the pomace dryer's drum, there is strong strength breakup device, it can effectively sove the problems of binding and agglomerate.

◆ Use the scraper feeder, adopts stepless variable speed drive, it can easily adjust the feed speed, and ensure the stability of the feed speed.

◆ On the pomace drying system's high and low temperature pipes, it is equipped with temperature measuring sensor and digital display instrument, and thus it can achieve the best drying effect and ensure the safe running of the drying system.

◆ The whole pomace drying system adopts electric centralized control, high degree of automation, convenient operation.

◆ After the drying section, the Pomace dryer for pomace can be matched with crushing, mixing, granulating, packaging, in order to produce the fruit residue granule feedstuff.

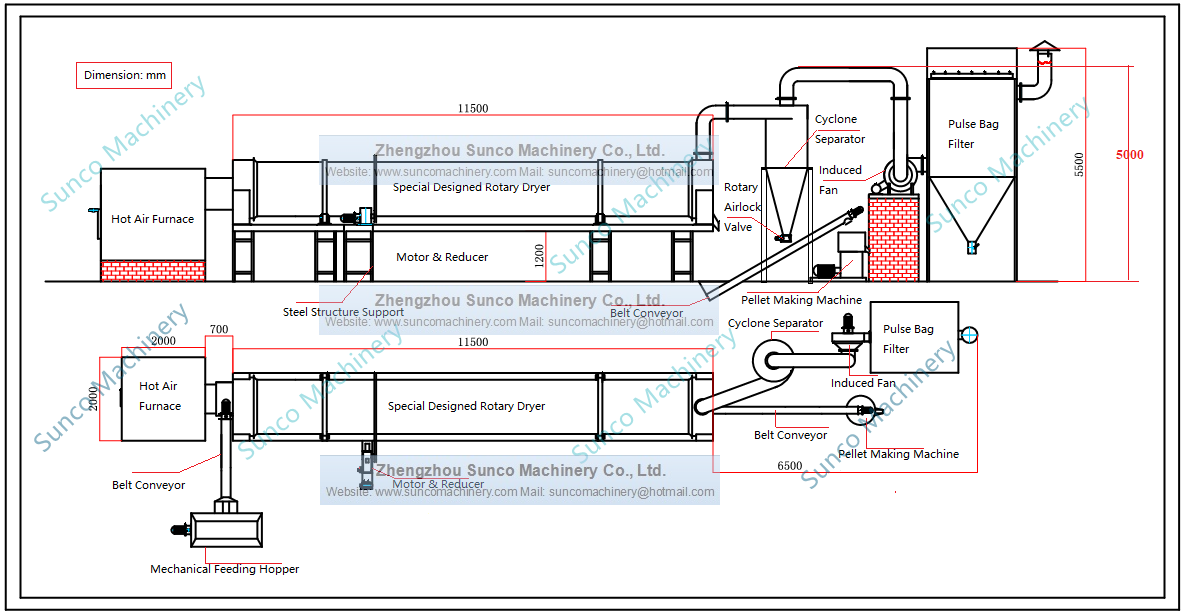

Working Flow of the Pomace dryer system as as follows:

Pomace dryer, apple pomace drying machine, rotary pomace dryer, drying pomace equipment, workflow of pomace drying system
>>> Burner and Hot Air Furnace: Burn the fuel, and creat hot air for the pomace drying process.

>>> Mechanical feeding hopper feeds wet apple pomace onto input belt conveyor.

>>> Input belt conveyor feeds wet apple pomace into rotary pomace dryer machine.

>>> In the rotary pomace dryer, the wet pomace is heated by high temperature air sufficiently, and the water is evaporated into vapor.

>>> Under the action of induced draft fan, the dried pomace with exhaust air and vapor goes into cyclone separator.

>>> In the cyclone separator, the dried pomace is collected, and come out from the bottom; the exhaust air and vapor goes out through the top of cyclone, and then pass through the induced draft fan, then goes into pulse bag filter.

>>> Dried apple pomace is taken away by the output belt conveyor to the product storage and packing area.

>>> Pulse bag filter is used to collect the fine dust from the pomace drying system.

>>> Electric control cabient is to control the whole pomace drying line.


Specification of Rotary Pomace Drying Machine:

Model
Input Capacity (T/H)Input M.C.(%)Output M.C.(%)Dryer Motor (KW)Heat Consumption (Kcal/hour)
SCV11121.040-50%
13-20%(adjustable)5.5260,000
SCV13121.57.5440,000
SCV13162.011600,000
SCV15152.515680,000
SCV15183.015890,000
SCV17184.018.51,150,000
SCV19185.0221,450,000


Sunco Machinery can design and supply Rotary Pomace Drying Machine, the needed information is as follows :

◆ Initial moisture content (%)of wet pomace ?

◆ Final output moisture content (%) of dry pomace needed ?

◆ Input Capacity (ton per hour ) needed ?

◆ Prefered fuel such as coal, waste wood, diesel, or natural gas, etc ?

◆ Other special requirements if have ?
