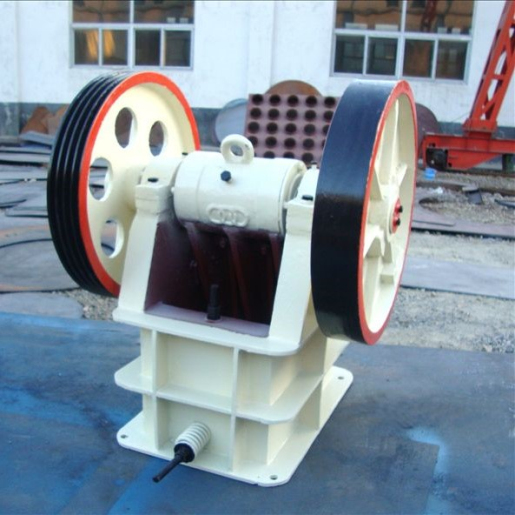

Small Rock Crusher

Small rock crusher also is named small jaw crusher ,small hammer crusher Small Rock Crusher can be used for crushing all kinds of rock with the crushing pressure of less than 320Mpa such as granite, limestone, calcite, iron ore, etc

Inquire Now Next:Jaw Crusher

Technical Parameters

Small Rock Crusher Brief Introduction:

Small Rock Crusher from Sunco Machinery can be used for crushing all kinds of rocks with the crushing pressure of less than 320Mpa such as granite, limestone, calcite, iron ore, etc.

Small Rock Crusher Working Principle :

◆ The motor drives the movable jaw plate to do periodic motion towards the fixed jaw plate by the eccentric shaft.

◆ The angle between toggle plate and movable jaw plate increases when movable jaw plate moves . So the movable jaw plate moves towards the fixed jaw plate. The material between the movable jaw plate and fixed jaw plate will be crushed in this process.

◆ The angle between toggle plate and movable jaw plate decreases when movable jaw plate moves down, the movable jaw plate moves leaves fixed jaw plate by pulling rod and spring, the final crushed material will be discharged from the outlet of the small rock crusher.

Small Rock Crusher Features:

◆ Simple structure, reliable working condition, easy maintenance, low operating costs;

◆ High crushing ratio, even final partical size products ;

◆ Deep broken cavity, no dead zone, increased capacity ;

◆ Safe and reliable lubrication system, convenient replacement parts ;

◆ Stand-alone energy-saving 15% ~ 30% ;

◆ The discharging size of small rock crusher can be adjusted to meet the users' different requirements.

Small Rock Crusher Technical Data:

Model	Inlet Size	Feeding Size	Discharge Size	Capacity	Power	Dimension	Weight
PE150X250	150x250mm	<125mm	10-40mm	1-3 t/h	5.5kw	896x745x935mm	900kg
PE250X400	250x400mm	<210mm	20-60mm	5-20 t/h	15kw	1150x1275x1240mm	2800kg
