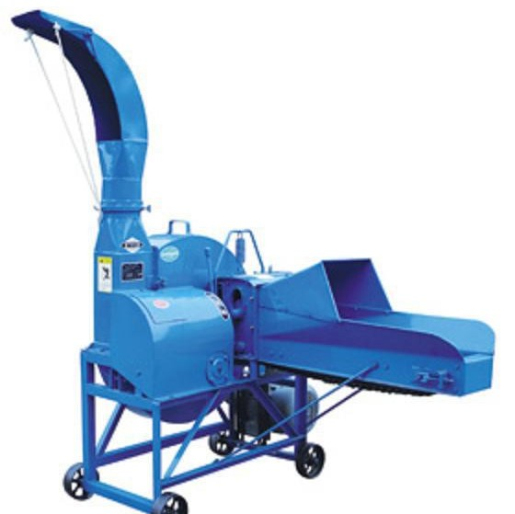

Grass Chopper

Grass Chopper also is called hay cutter which is widely used for cutting forage grass,alfalfa, fresh (dry) corn straw, wheat straw, rice straw, stalks, other crops straw and etc

Technical Parameters

Introduction of Forage Grass Chopper:

Grass Chopper also is called hay cutter which is widely used for cutting forage grass, alfalfa, fresh (dry) corn straw, wheat straw, rice straw, stalks, other crops straw, etc.

As the special design, Forage Grass Chopper not only can cut the grass, straw, hay, stalks into smaller pieces, but also can knead them so that the forage grass has better taste for the animal.

After being crushed by Forage Grass Chopper, it can be used as high quality animal feed.


Structure of Forage Grass Chopper:

Special Cutterhead structure, the length of the forage grass can be adjusted, with reducer machine except small model.


Capacity Range of Forage Grass Chopper:

Sunco Machinery can supply different capacity Forage Grass Chopper as customers' actual need from 400kg per hour to 10000kg per hour.

Advantages of Forage Grass Chopper:

1. Straw chaffcutter for animals,papermaking etc

2. Cut wet or dry corn straw,wheat straw,hay etc

3. Cut various lengths between 10m-50mm

4. Suitable for home use, small and middle size farm

5. Save labor and time

6. Straw hay cutter is suitable for cutting all kinds of green grass, hay, tobacco, wheat straw, etc.Various kinds of forage grass or medicine.

7. Can be driven by motor, diesel engine or tractor PTO, especially suitable for areas where lack of electric power;

8. Discharging size can be adjusted;

9. Easy operation.


Technical Data of Forage Grass Chopper:


Model
PowerPower Supply
Rotation SpeedCapacityDimensionWeight
FGC-101.5KW220V, or as need
900 RPM
500 kg/hour600x400x700mm
80kg
FGC-203.0KW220V, or as need900 RPM1000 kg/hour940x540x950mm200kg
FGC-304.0KW
380V, or as need900 RPM2000 kg/hour1050x1880x2290mm260kg
FGC-4011.0KW380V, or as need900 RPM4000 kg/hour1735x1575x2315mm500kg
