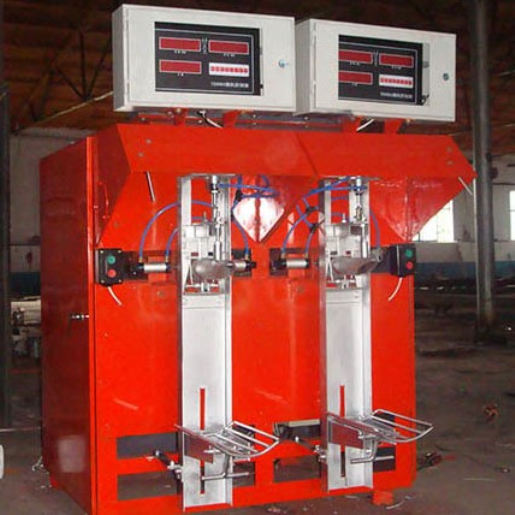

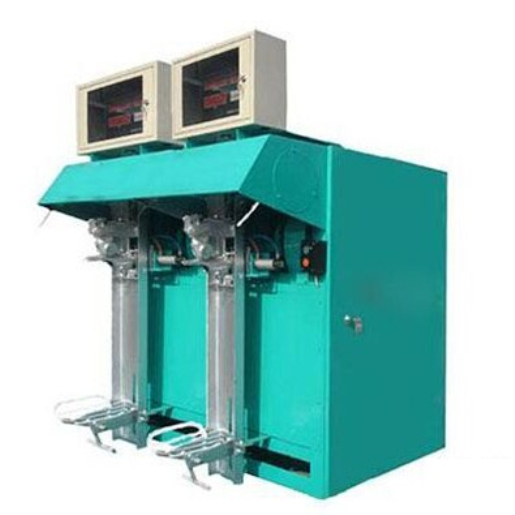

Dry Mortar Packing Machine

Dry Mortar Packing machine is specially designed for the packaging of dry mortar with all kinds of bags including peritoneal bags High automation (automatic recognition of computer intelligence) is easy to operate It can complete the whole process of weighing and packing with only manual adding bag It saves manpower, reduces labor intensity, greatly reduces production cost, greatly improves production efficiency, and all technical indexes of the machine all reach international standard

Inquire Now Next:Powder Filling Machine

Technical Parameters

Introduction of Dry Mortar Packing Machine:

Dry Mortar Packing machine is also known as Dry Mortar Filling machine, Dry Mortar Bagging machine.

Dry Mortar Packing machine is specially designed for the packaging of dry mortar with all kinds of bags including peritoneal bags. High automation (automatic recognition of computer intelligence) is easy to operate. It can complete the whole process of weighing and packing with only manual adding bag. It saves manpower, reduces labor intensity, greatly reduces production cost, greatly improves production efficiency, and all technical indexes of the machine all reach international standard.

Material Feeding Type: Impeller feeding

Main features of Dry Mortar Packing Machine:

1. full automatic microcomputer control, computer intelligent automatic identification, automatic measurement, high sensitivity, stable performance, strong anti-interference ability, accurate weighing.

2. the design is novel and the machine is few. It not only reduces the maintenance cost, but also improves the production efficiency.

3. automatically realize the functions of packing, filling, closing and dropping bags, with stable performance and simple operation.

4. the fuselage is all sealed with a dust outlet. The structure is reasonable and durable.

5. the filling machine has two types of oil filling, one mouth and two mouths, and 4-6 mouth packer can be made from two mouths.

Application of Dry Mortar Packing Machine:

Dry Mortar Packing machine is widely used in the quantitative packaging of powder objects such as dry powder mortar, cement, putty powder, stone powder, fly ash powder, gypsum powder, heavy calcium powder, quartz sand, fire fighting materials and so on.

Technical Data of Dry Mortar Packing Machine:

Model	G50-1	G50-2
Discharging nozzle number	1	2
Power	4	8
Capacity	8-15	16-30
Weighing Range	10-50 kg/bag	10-50 kg/bag
Measuring Accurancy	±0.5%	±0.5%
Bag weight percent of pass	≥95%	≥95%
Feed Flange (mm)	280x260mm	280x260mm
Power Supply	As need	As need
Weight	350 kg	800 kg
Overall Dimension	1400x800x1720mm	2800x1600x1720mm
