Mineral Slag Dryer Machine

Mineral Slag Dryer Machine, also is known as Rotary Slag Drying Machine, it is widely used in cement, mining, building materials, chemicals, food, metallurgy, chemical, fertilizer production, slag, clay, and other industries.

With its advanced technology, high efficiency, low energy consumption, stable operation, and easy operation and maintenance, safety, and environmental protection, Mineral Slag Dryer Machine by Sunco Machinery is hot sale around the world.

Sunco Machinery is currently one of the professional and authoritative enterprise engaged in the research and development of sand and slag drying equipment in China. We are the science and technology enterprise in China's drying industry that integrates design, production, and sales. After nearly 15 years Fast and steady development has gradually become the famous industrial drying equipment field.

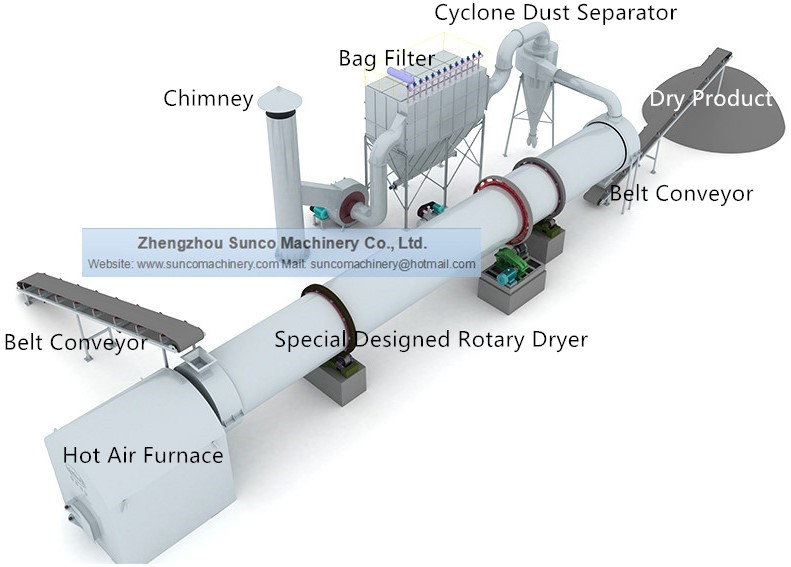

Mineral slag tumble dryer is mainly composed of hot air furnace, belt conveyor, rotary drum dryer, belt conveyor, induced draught fan, cyclone dust collector, bag dust collector (or wet dust collector) and operation control system.

Mineral Slag Dryer Machine adopts the fair current (or countercurrent) drying process. Its working principle as following: After wet slag entering the drying drum, the wet slag is spitting into the following working areas:

Firstly, the material guiding zone. The mineral slag enters this zone and contacts with high-temperature hot air to quickly evaporate water. Under the circumstance of the large lead angle guide plate, it is transferred to the next work area;

Secondly, it is the copy board area. The mineral slag is the lifting flight drop and pick up in this area to form the material curtain state. At this time, the material in full contact with the hot blast. The moisture in the material slag is quickly evaporated and stripped into water vapor. The water vapor drawn away immediately by the induced draft fan to achieve the purpose of drying the mineral slag; the mineral slag is dried in this area to moisture content of less than 3% (or lower) In the loose state, after the heat exchange, the material reaches the required moisture state and enters the final discharge area.

Thirdly, it is the discharge area. The drum does not have a copy board in this area. The material is rolling in the area to the discharge port, completing the entire process.
